UV detection card

UV test card can distinguish different ultraviolet bands, including long wave 365nm, short wave 254nm and blue light 400nm. The test card uses two kinds of materials to detect at the same time. It determines the wavelength parameters of the excitation light source by judging spectral changes at different wavelengths.

At the same time, it can be used to detect ultraviolet spot, optical axis calibration and tracking, and convert the invisible ultraviolet to visible light.

  Excitation   Wavelength

Model

400nm365nm253nm
UV-1BlueGreenOrange
UV-2OrangeYellowGreen
NO UV
紫外感光卡_253激发_300×300
253nm
365nm

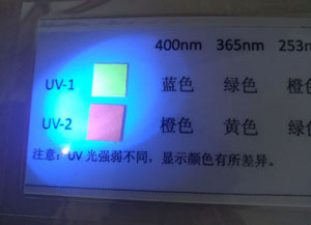

紫外感光卡_400激发_300×217
400nm
