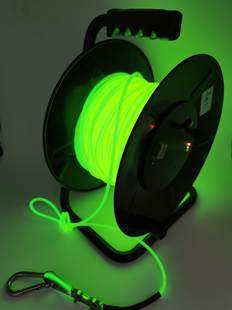

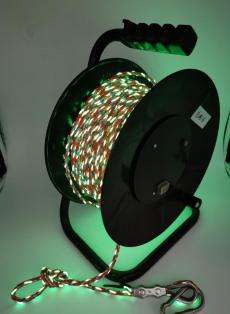

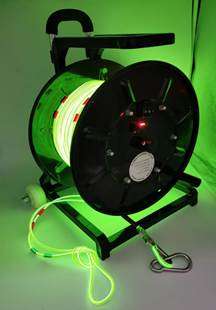

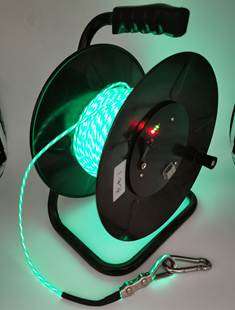

Rope Light protection security lead lighting wire looks like PVC telephone wire, its surface is Colorful thermostable PVC tube, and there is KPT patent product inside: flexible neon wire. It emits continuous light and no radiative heat, its consumption of electricity energy is 50-70% of LED, 20-40% of bunch lamp.
Use field: traffic security sign and indication, Night Rescue equipment ,exit passage and stairway exit lead, temporary outdoor warning sign, reflective rope,shop centre/subway/coal mine and other places succor, concert lead line. Description
1)Easy to use, save energy, can light for 4-5 hours with battery once. It has a handle, can be under AC220V/110V or DC12V in car.
2)Light is peaceful and colorful, visibility distance is about 50-100m.
3)CE and RoHs, good for environment and health.
4)Operate easily, our lead wire is soft and flexible, can bend, cut and connect freely.
Technology index:
Diameter: 5.0mm and 8.0mm. Color: Yellow, Orange, Transparent (blue-green) Light intensity: 1-20 cd/m2
Work current: 300m A Voltage of lighting inner cord: 120V, 1500Hz Isolation voltage: 4000V and up.
Capacitance: 4nF/m with on/off switch. Average lifetime: 1000 hours Environmental temperature: -20℃ to 60℃
Input condition: DC12V，3400mA, rechargeable storage battery, 5 hours for recharge, 4-5 hours for work.
Recharge time: 500 times. lead acid storage battery. The burning point of surface PVC tube: 256℃
The visible distance of lighting: 30-100m The visible time of The afterglow lighting: 2-5 hours
Luminescent density: 0.001Cd/m2 Execution standard :TFUJ 001-2008

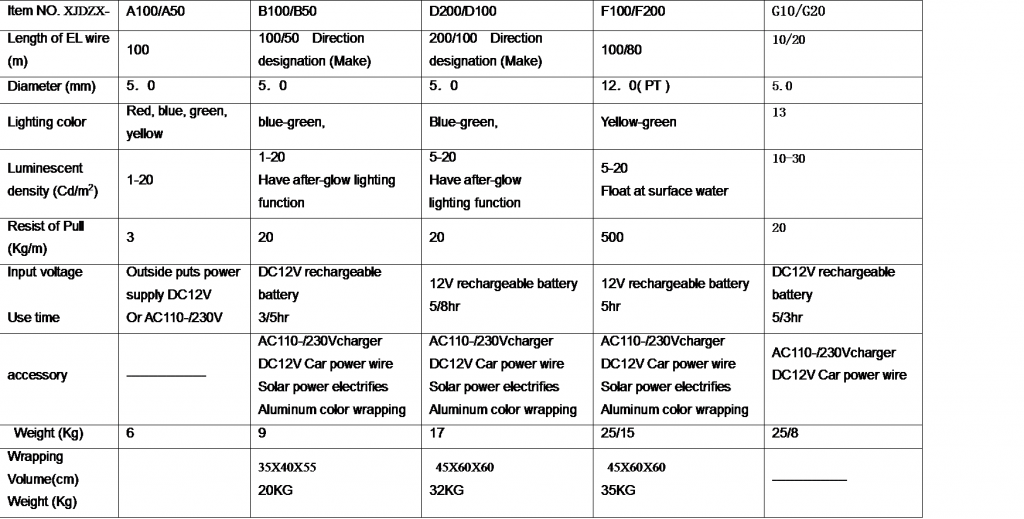

Item NO. XJDZX- | B100/B50 | D200/D100 | G10/G20 |
Length of EL wire (m) | 100/50 Direction designation (Make) | 200/100 Direction designation (Make) | 10/20 |
Diameter (mm) | 5．0 | 5．0 | 5.0 |
Lighting color | blue-green, | Blue-green, | 13 |
Luminescent density (Cd/m2) | 1-20 Have after-glow lighting function | 5-20 Have after-glow lighting function | 10-30 |
Resist of Pull (Kg/m) | 20 | 20 | 20 |
Input voltage
Use time | DC12V rechargeable battery 3/5hr | 12V rechargeable battery 5/8hr | DC12V rechargeable battery 5/3hr |
accessory | AC110-/230Vcharger DC12V Car power wire Solar power electrifies Aluminum color wrapping | AC110-/230Vcharger DC12V Car power wire Solar power electrifies Aluminum color wrapping | AC110-/230Vcharger DC12V Car power wire
|
Weight (Kg) | 9 | 17 | 25/8 |
Wrapping Volume(cm) Weight (Kg) | 35X40X55 20KG | 45X60X60 32KG | —————– |
